SPECIFICATIONS

Brand Name: Leicozic

Transducer: Dynamic Microphone

Set Type: Matched Pair

Style: Handheld Microphone

Use: Stage Performance Wireless Microphone

Origin: Mainland China

Package: Yes

Polar Patterns: Hypercardioid

Certification: CE

Diaphragm: S-Mall

Communication: WireLess

Operating frequency: 615-655Mhz

channel: 200

Power supply: 2*AA batteries

Standing.time: about 20 hours

S/N ratio: >105dB

T.H.D distortion: <0.5%

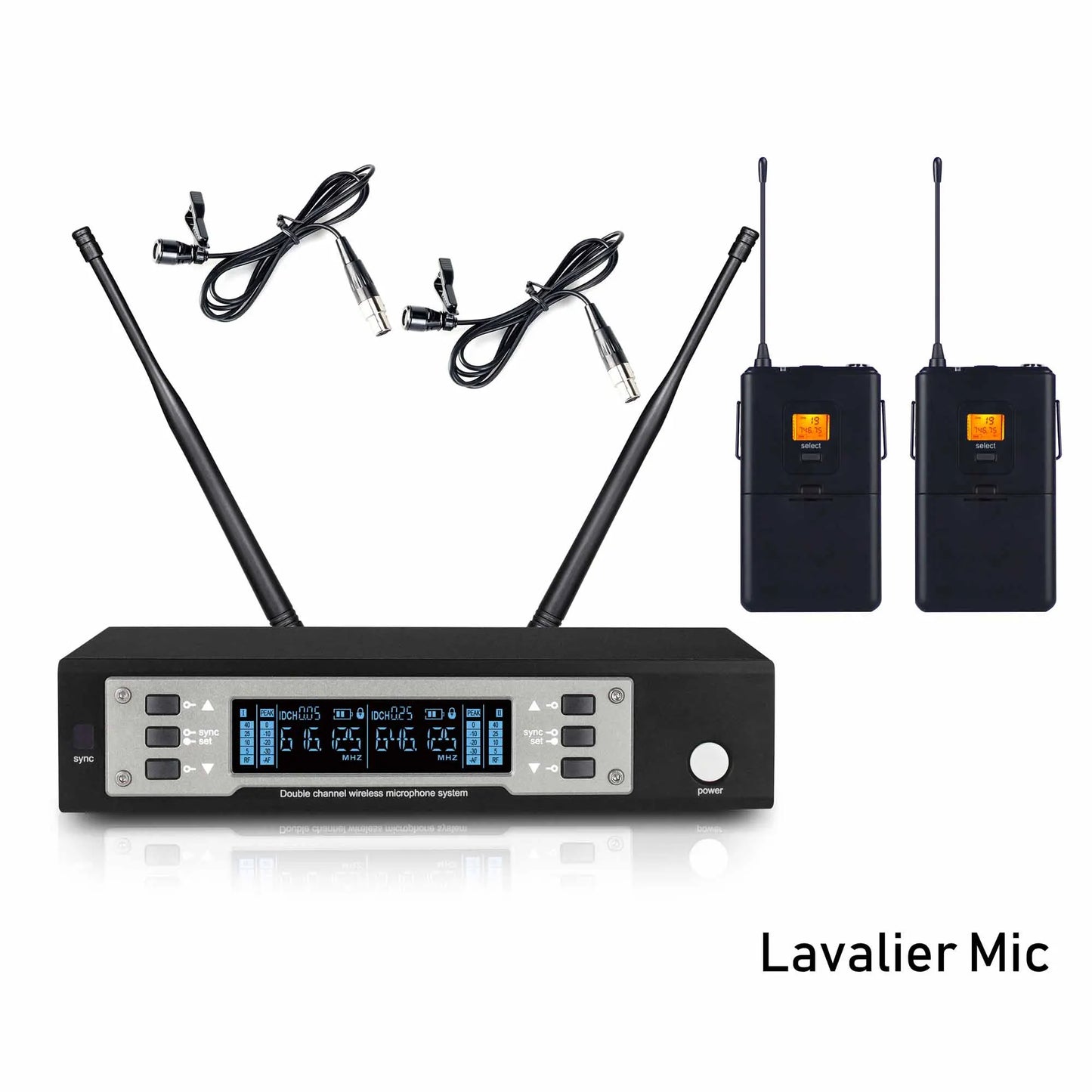

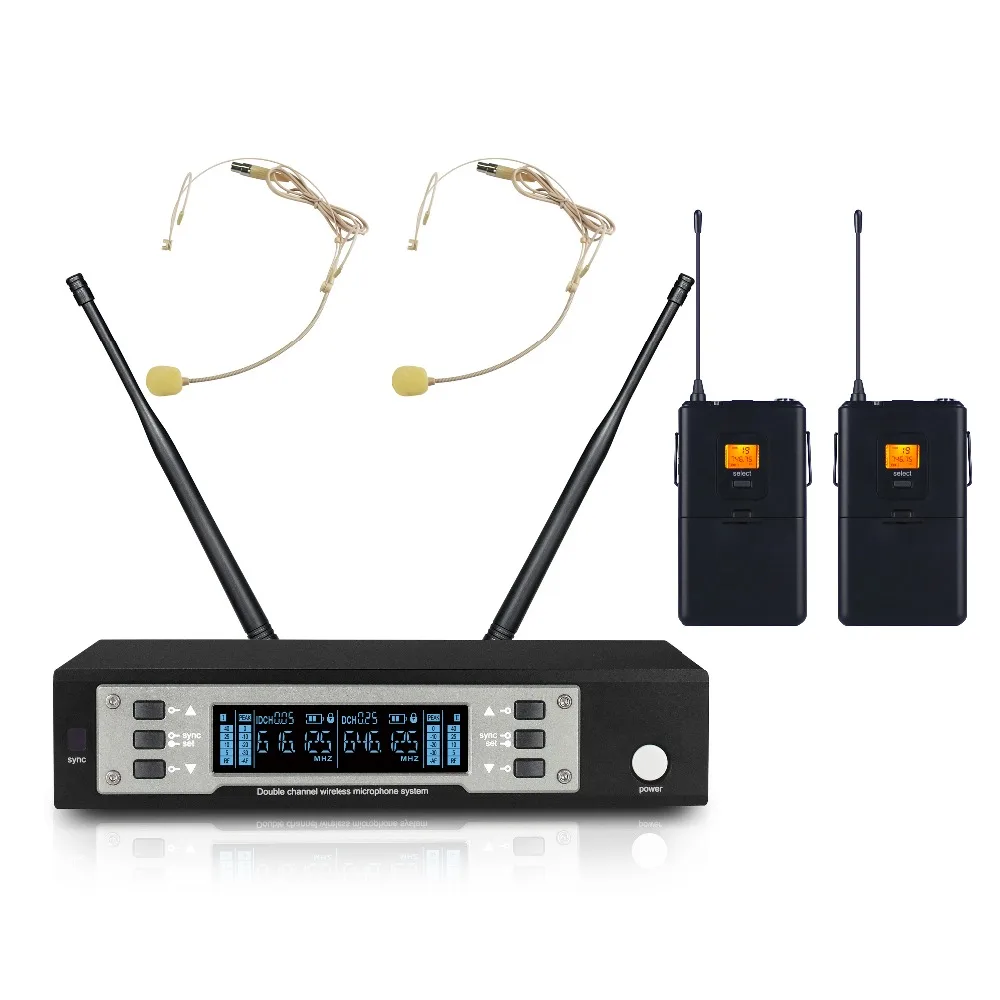

transmitter: handheld/headset/lavalier

available distance: 120meters

Receiver: true diversity

use: stage/touring/church

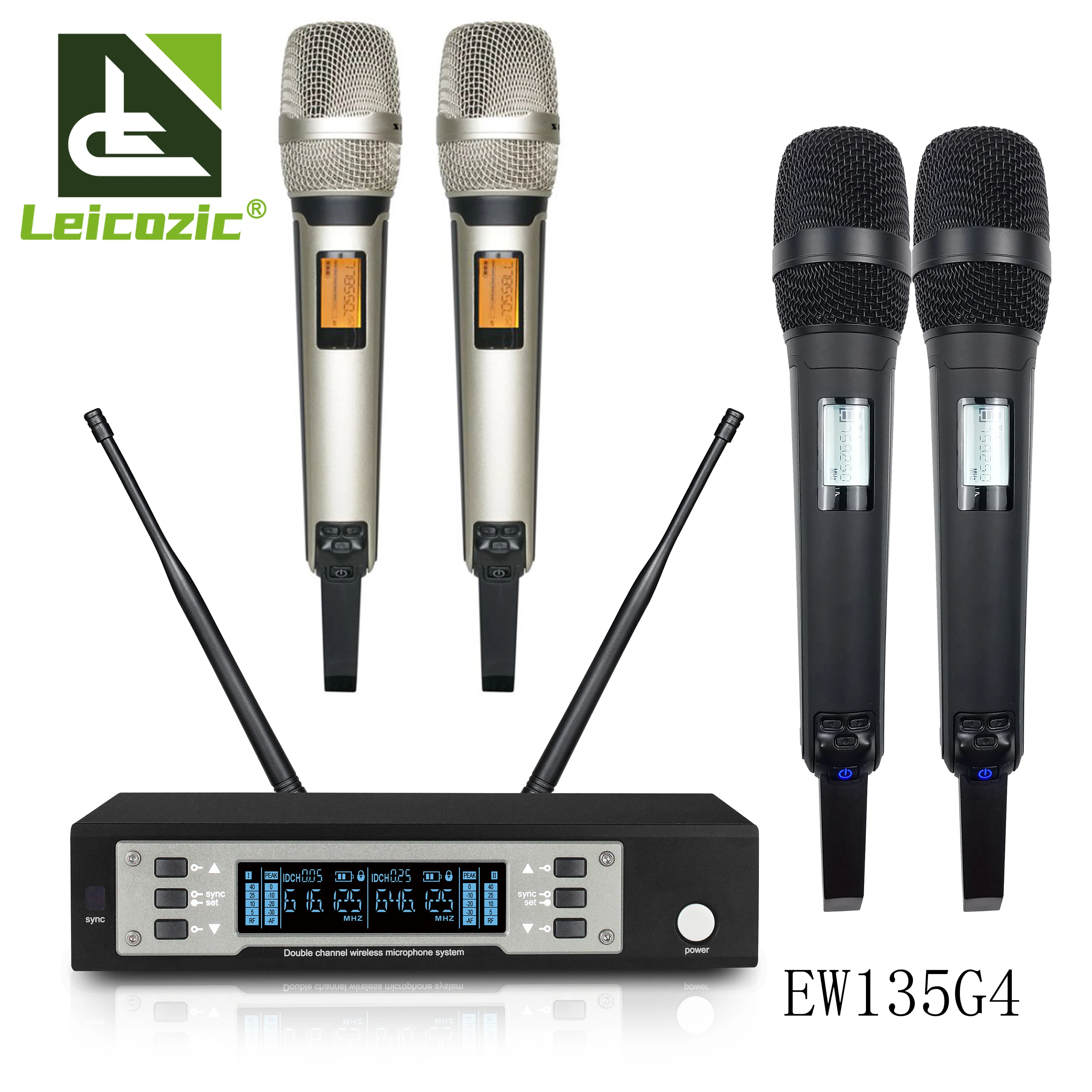

Packing includes:



1True diversity Digital Receiver 615-655Mhz

2Handheld mic

2 Audio cable

1 power adapter

2 antennas

1 Operating instructions

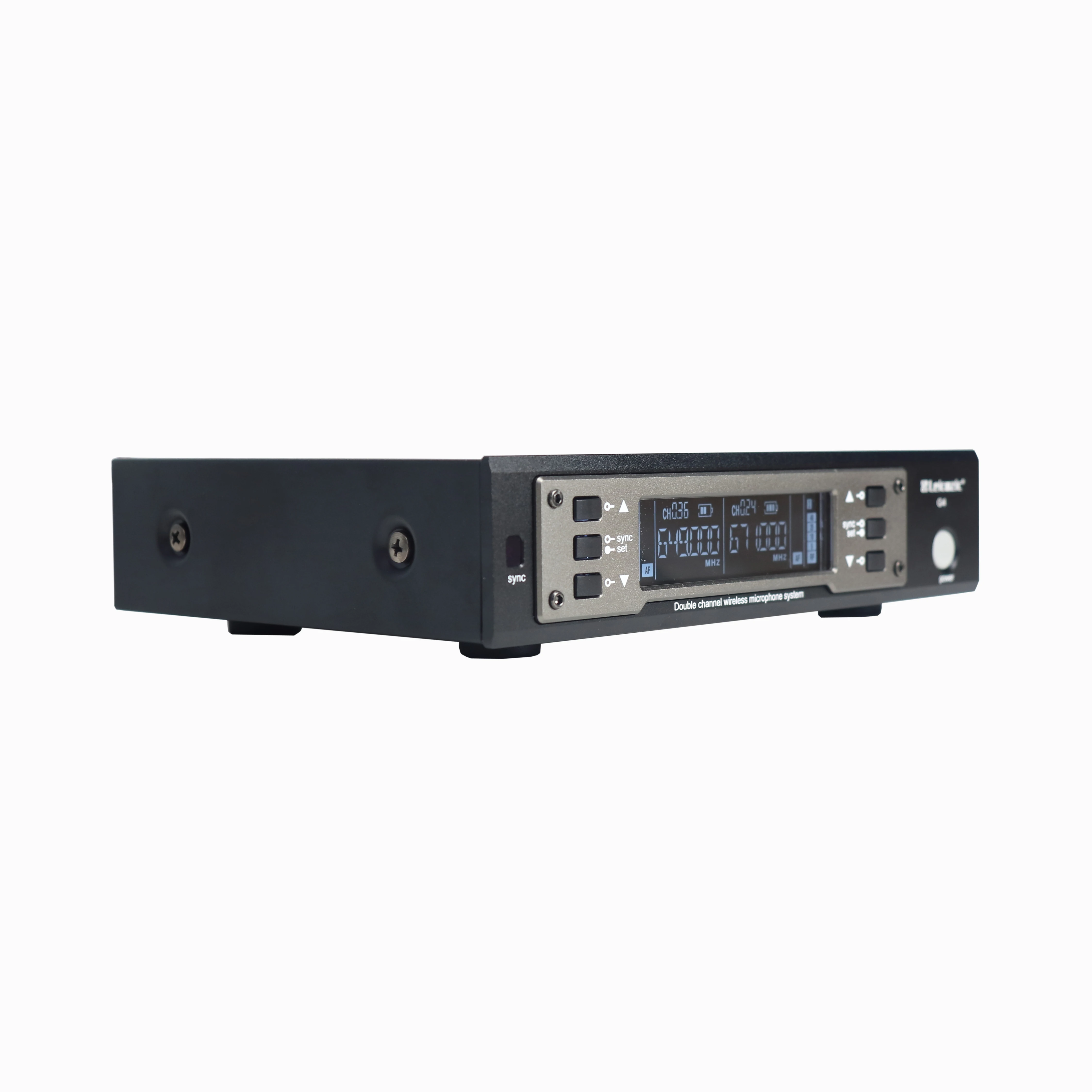

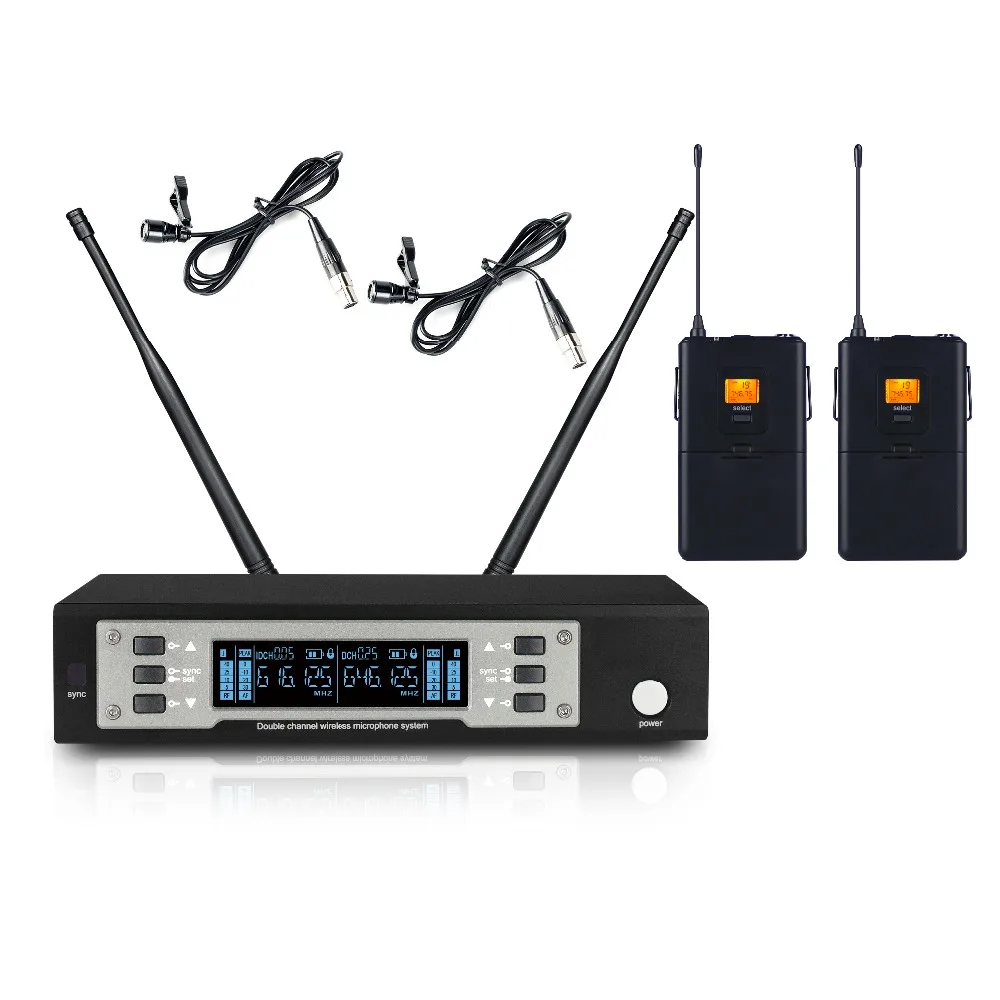

Receiver:

Size: Standard 1U Chassis

Channel Group: Dual Channel

Carrier frequency band: UHF615-655Mhz

Modulation method: FM

Oscillation mode: PLL phase lock frequency synthesizer

Frequency stability: ±0.0005%

Sensitivity: When the offset is equal to 25KHz and input 6dBμV, S/N>60dB

Maximum offset: ±45kHz

Bandwidth: 40MHz

Comprehensive S/N ratio: >108 dB

Comprehensive T.H.D. : <0.4% @ 1 KHz

Comprehensive frequency response: 65Hz~18kHz ± 3dB,

Maximum output voltage: Balanced: -20dBV/100Ω,

Unbalanced: -4dBV/5KΩ.

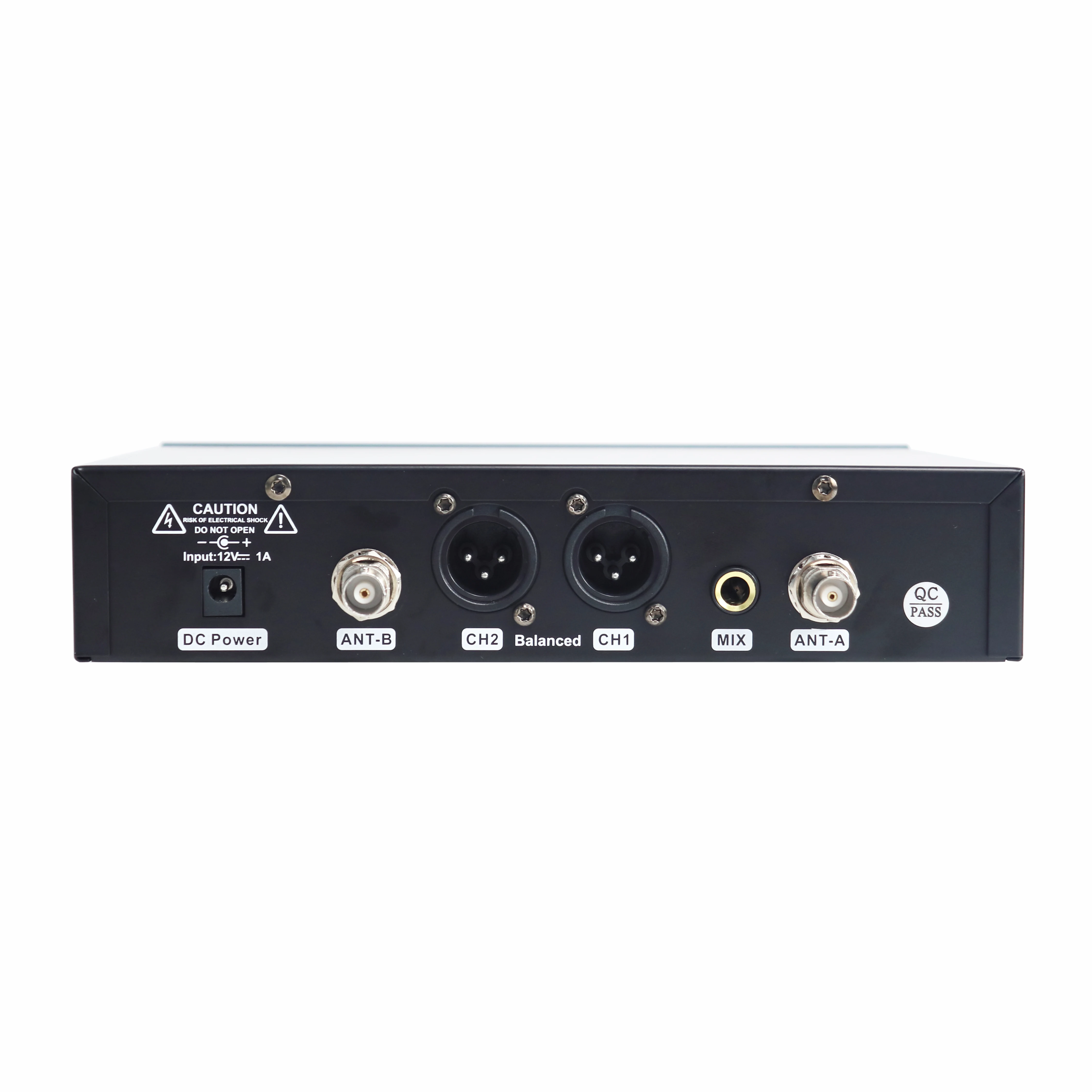

Output socket: XLR balanced and 6.3φ unbalanced socket

Effective working distance: generally 200 meters (open space)

Power supply: 100 - 240V AC50/60 Hz, 10W

Weight: 4.3KG

Size (mm): 250 (L) × 43 (H) × 103 (W)

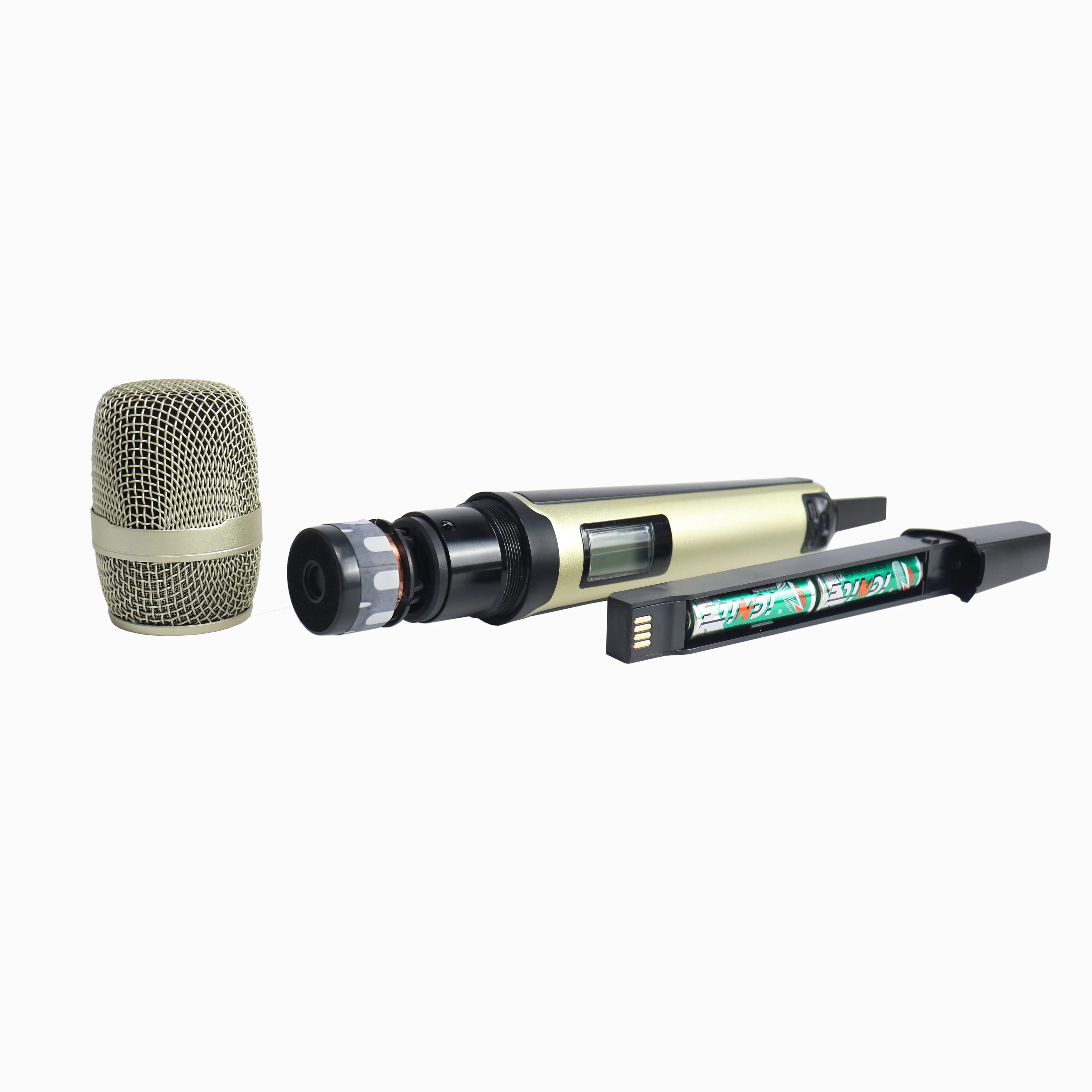

Transmitter

Carrier frequency band: UHF615-655Mhz

Oscillation Mode: PLL Phase Locked Frequency Synthesizer

Harmonic radiation: < -63dBm

Bandwidth: 80MHz

Maximum offset: ± 45KHz

Power output: 30mW

Frequency response: 50Hz~18KHz

Maximum input sound pressure: 130dB SPL

Sound head: moving coil

Battery: AA×2

Current consumption: <110 mA

Size (mm): 265mm Length × 56mm Diameter
